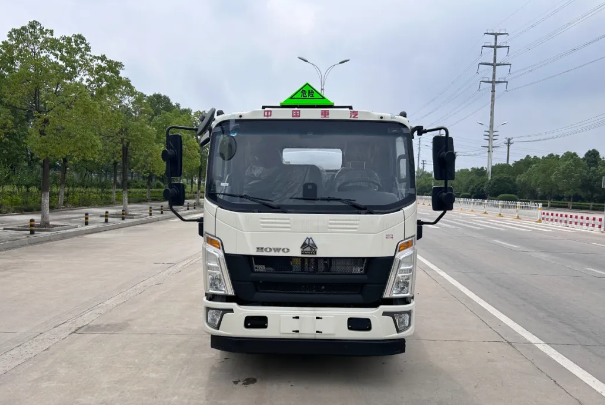

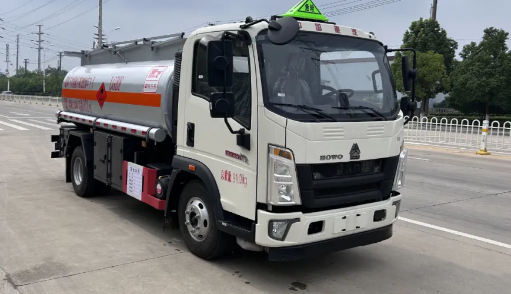

SINOTRUCK HOWO Tanker 7.5 cubic meter refueling truck
May 31,2024
Chassis model: ZZ1097H3815F191Z
Total mass (Kg): 9100
Curb weight: 3905
Rated load (Kg): 5000,5065
Number of passengers in the cab (persons): 3.2
Tank volume: 7.5 cubic meters
Transport medium: gasoline
Engine: Weichai 130 horsepower
Overall dimensions: 6150×2150×2650
Tank dimensions: 4000×1850×1250
Chassis configuration: HOWO 1900mm wide cab, single row, Wanliyang 6-speed, 5-ton bridge, 7.50R16 steel tire, 120L aluminum alloy fuel tank, clutch power, air brake, exhaust brake, dynamic rotation; lane departure warning, vehicle forward collision warning, color screen instrument, electronically controlled air horn, main power switch, multi-function steering wheel (including cruise control), National VI emission monitoring terminal, aluminum alloy air tank, front exhaust pipe (including exhaust spark arrester), front and rear axle wear alarm device, speed limit function, steering wheel equipped with tire blowout emergency protection device, Smart Pass A version, central locking and electric doors and windows + remote control key, air conditioning, ABS+ASR.
Upper equipment configuration: Made strictly in accordance with the announced dimensions and appearance pictures, the announced volume is 7.5 cubic meters, the tank body is made of Q235 high-quality carbon steel plate, arc gear oil pump (can pump in and out), single compartment (multiple compartments can be customized), a complete set of lower oil loading system (including 1 lower loading and unloading oil valve, 1 oil and gas recovery valve, 1 oil and gas recovery interface, 1 set of pneumatic combination switches, 1 anti-overflow probe rod and 1 socket), a European standard tank cover, a seabed valve, folding lifting guardrails on both sides of the top of the tank body, anti-slip steel mesh on the top, 3M orange reflective tape and reflective strips on both sides of the tank body, three "flammable liquid" signs, safety notices, dangerous brands, dangerous goods triangle lights, a tool box, two oil pipelines, two fire extinguishers, and other products are made according to standard configurations. Optional large-flow refueling machine, 15-meter automatic return reel and refueling gun. Flow meter.
Highlights of the upper assembly process: Non-destructive testing process All main welds of the tank body are strictly operated according to the non-destructive testing process (single-sided welding and double-sided forming: plate welding-copper groove, circumferential seam welding-ceramic liner process), and are inspected (X-ray detection) according to the non-destructive testing ratio specified in the GB18564.1-2019 standard. Sandblasting process The surface of the tank body is sandblasted to achieve the effect of dust removal, dirt removal and rust removal, and enhance the thickness and adhesion of the paint. The paint baking process realizes pre-installation + paint baking + final assembly, and the paint of the whole vehicle has no dead corners and no omissions.
