XCMG V-type paver, reliable and excellent!
June 05,2024

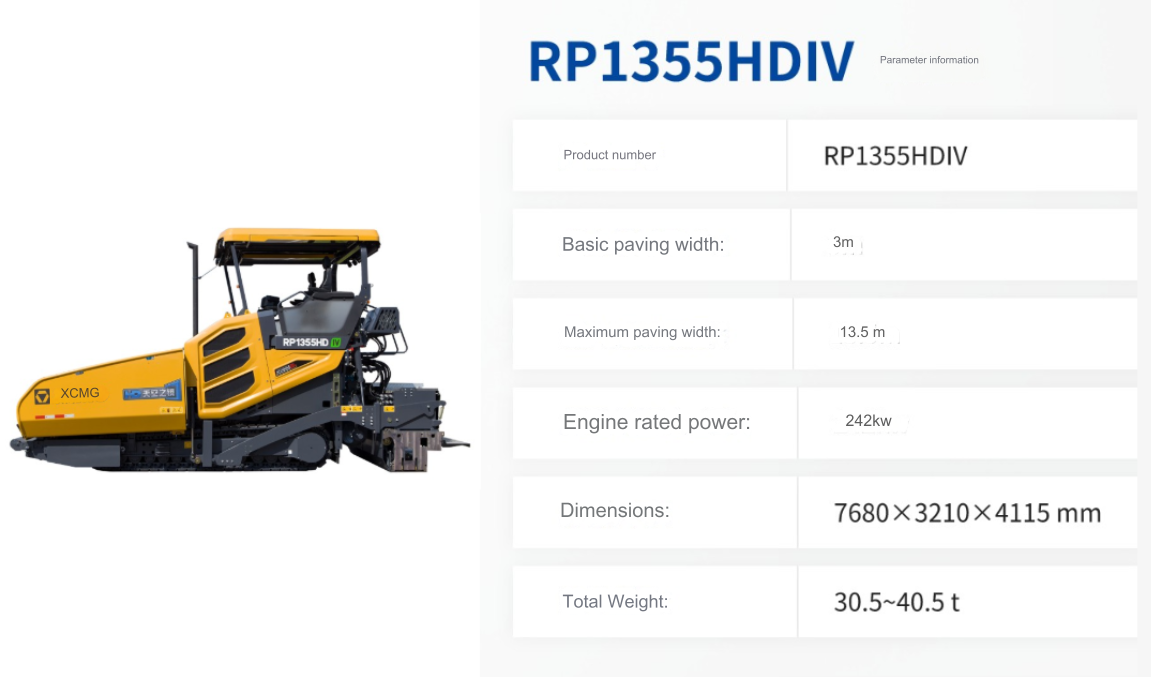

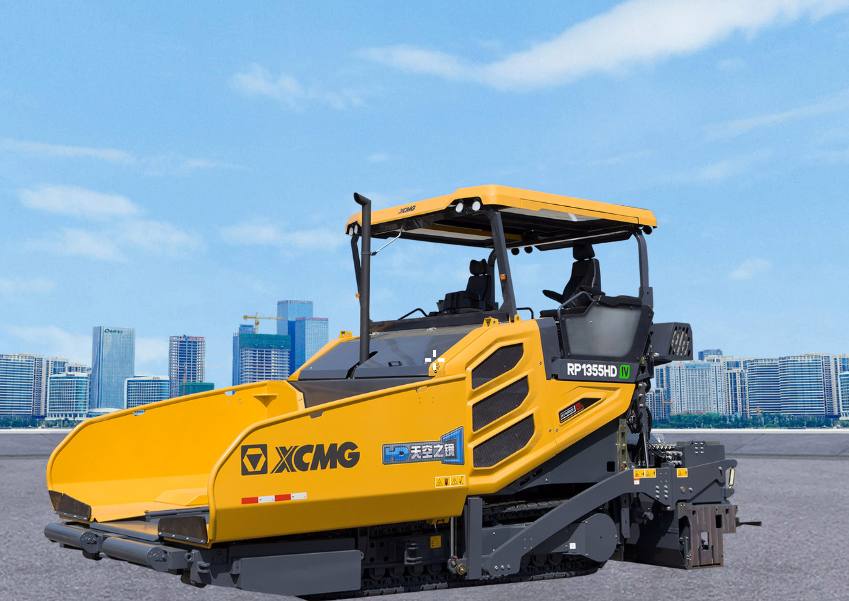

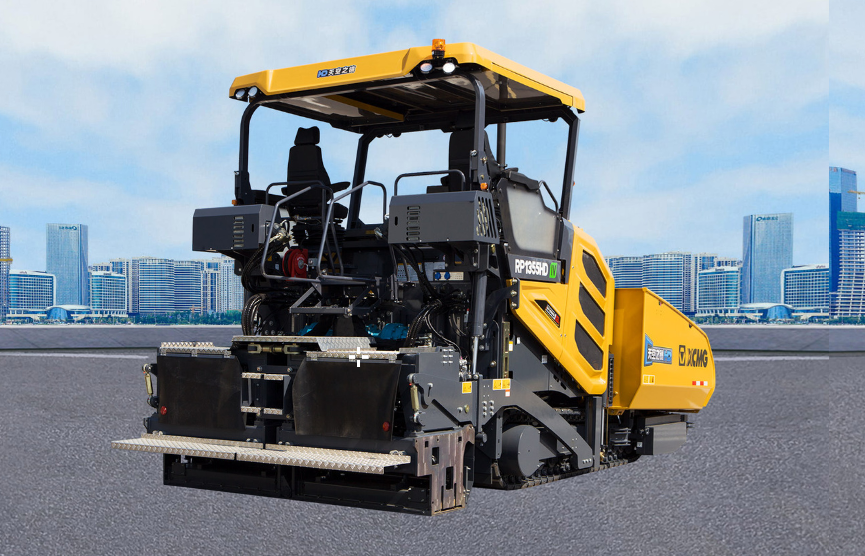

RP1355HD | V-type paver has reliable quality and excellent working performance. It can be widely used in the spreading and catching of various grades of road surface materials, especially for special construction requirements of large width and thickness. The machine adopts the most advanced technologies in the world today, such as full hydraulic drive, microcomputer control, left and right independent drive, ultrasonic material level sensor control, electronic automatic leveling, vibration compaction, variable frequency heating, etc., which makes the machine have the advantages of good paving stability, uniform material feeding, high pre-compacting density, good flatness, comfortable operation, easy maintenance, energy saving and environmental protection, etc. The machine's accessories adopt imported components, making the whole machine The manufacturing quality and reliability have reached the level of similar imported products. It is an ideal equipment for paving asphalt concrete materials. It is suitable for all grades of highways.

It uses Dongkang L9CS4330C National IV diesel engine with powerful power of 242kW/1800 r/min.

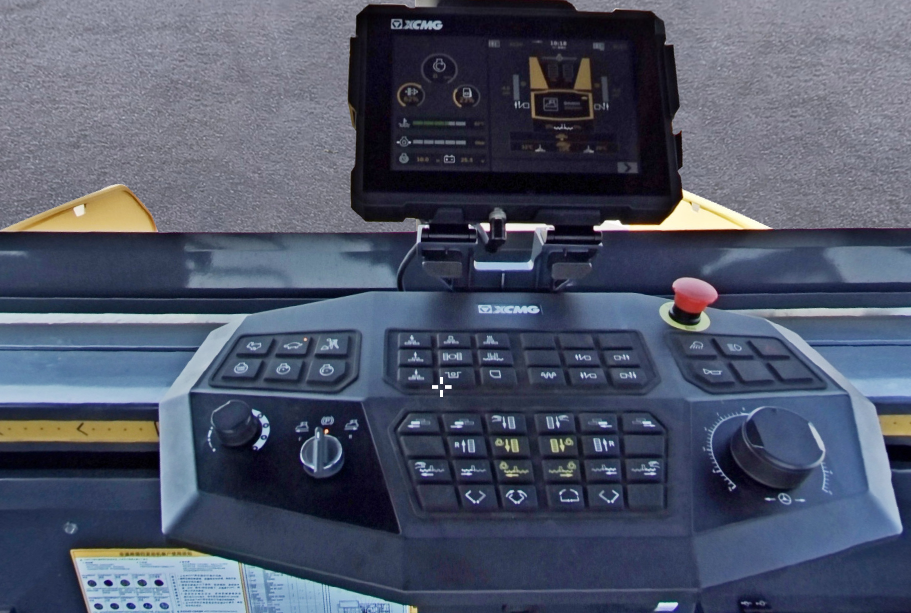

The left and right driving are independently driven, controlled by microcomputer, and the paving speed adopts constant speed automatic control technology.

It uses a three-in-one powerful composite radiator to ensure long-term continuous operation at a high temperature of 50 ℃. The fan speed is automatically adjusted steplessly with the water temperature, saving energy and reducing noise.

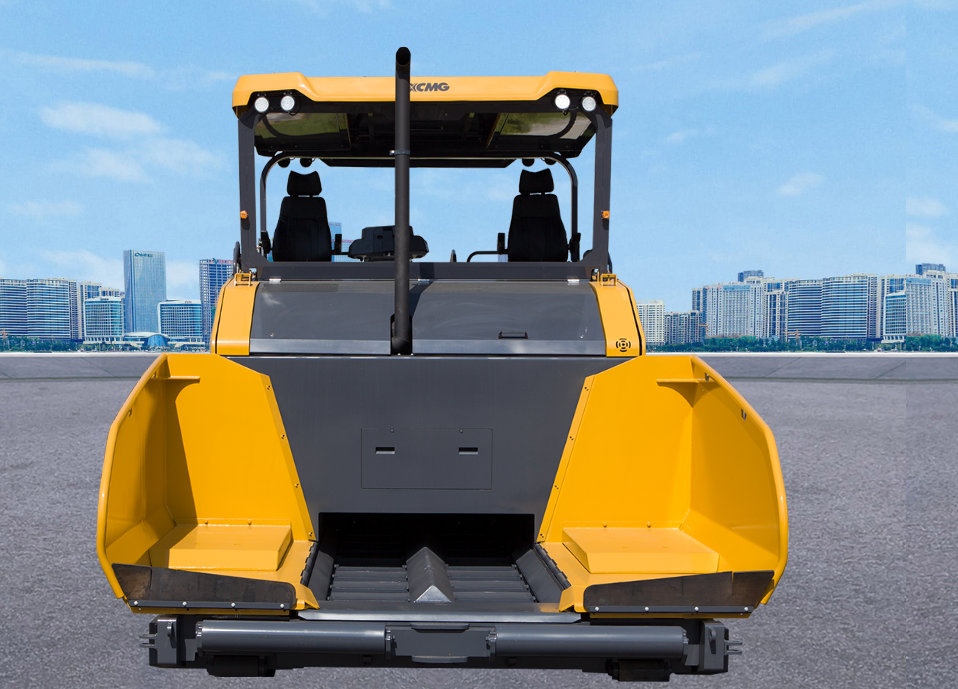

The material conveying and dispensing is driven by four independent full hydraulic systems. The material conveying and dispensing adopts ultrasonic sensor control technology and automatic material level control to ensure the stability of the material level in the material trough.
