In Another Arena, this wave of XCMG's "Champion" Products are Outstanding!
July 29,2024

The 2024 Paris Olympics has kicked off.

Chinese athletes are in high spirits and attracting worldwide attention.

In the field of engineering machinery, XCMG products rely on the spirit of constantly surpassing themselves and overcoming difficulties.

And the ambition to be at the forefront of the world.

Also won recognition around the world.

Today, let's take a look at the style of XCMG's "champion" products.

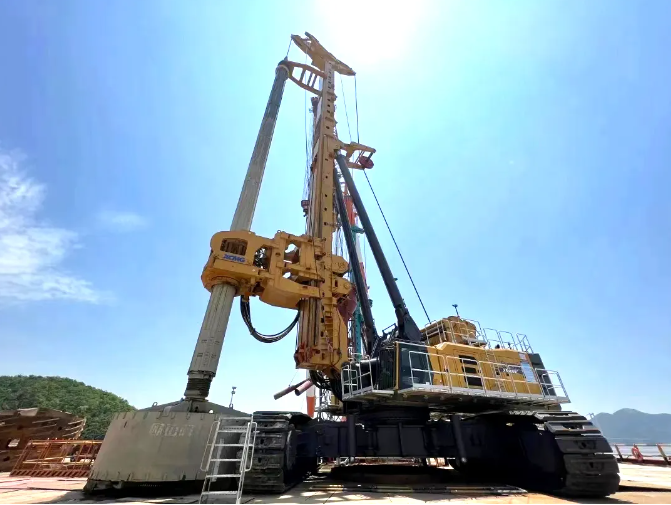

XCMG XR1600F

Large-tonnage rotary drilling rig

XCMG's XR1600F rotary drilling rig is currently the world's largest rotary drilling rig, with a maximum drilling diameter of 7.5m, a maximum drilling depth of 190m, a power head output torque of 1600kN·m, a total height of 42m, and a total weight of 520 tons, equivalent to the weight of nearly 65 adult elephants. It can meet the construction of ultra-large diameter, ultra-deep, and ultra-hard pile foundations, adding "super equipment" to super projects such as cross-sea bridges, offshore wind power, and super high-rise buildings, leading the industry to develop in the direction of large piles and deep holes.

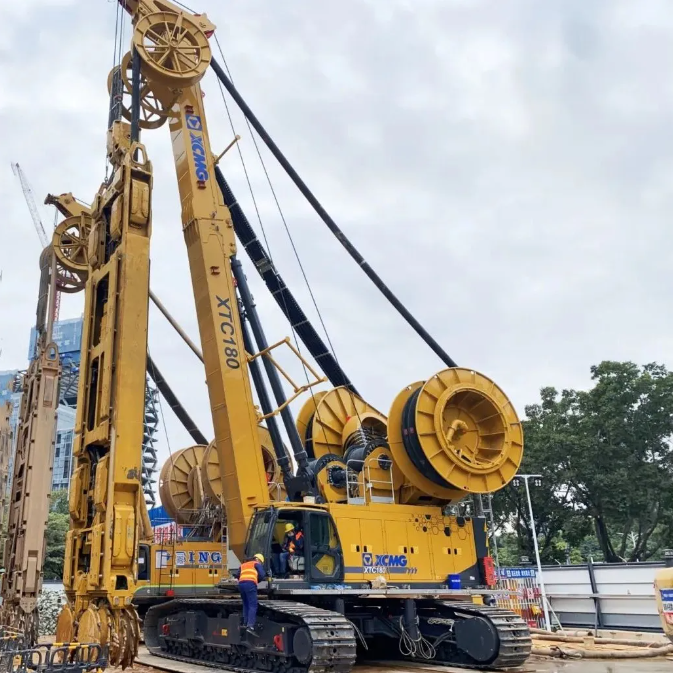

XCMG XTC180

Large-tonnage double-wheel slot milling machine

XCMG's XTC180 double-wheel slot milling machine has the deepest construction depth in the world, and can meet the construction of 250m ground-connected wall and anti-seepage wall. The slot thickness is 1000-2000mm, and the maximum torque of the milling wheel is 180kN.m, which can meet the construction of rock formations with a hardness of more than 100MPa; it reaches the highest level in the industry in terms of slot depth, milling wheel speed, maximum winch tension, and slag discharge capacity. It is used in the construction of anti-seepage walls, retaining walls, and load-bearing walls in deep foundation projects such as subway stations, building foundation pits, reservoir dams, mines, and environmental protection projects.

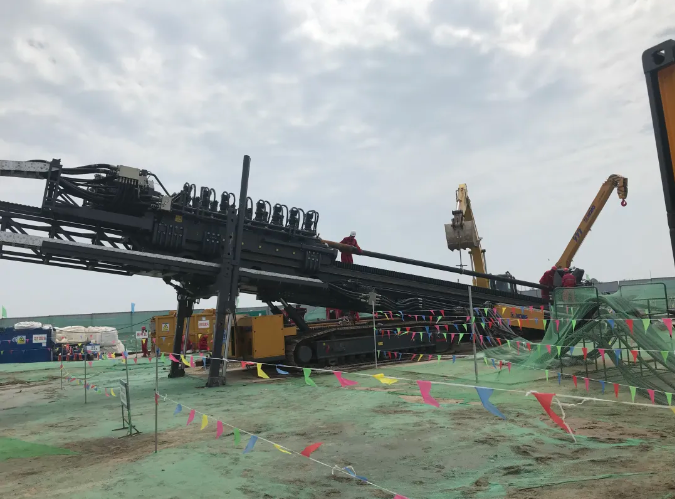

XCMG XZ13600

Ultra-large tonnage horizontal directional drilling rig

XCMG's XZ13600 horizontal directional drilling rig is currently the largest tonnage horizontal directional drilling rig with the largest output torque in the world. It is a construction tool launched by XCMG for large-scale long-distance pipeline networks at home and abroad. The expansion diameter can reach φ3000mm and the construction distance can reach 5000m. It is suitable for the laying of large-scale oil and gas long-distance pipelines, which can reduce 70% of carbon emissions in traditional excavation construction and solve the "bottleneck" problem of national energy pipeline construction. The XZ13600 horizontal directional drilling rig adopts a modular combination split design, and applies a number of advanced control technologies such as electro-hydraulic proportional control, load-sensitive control, and full-electric control, as well as XCMG patented technologies. The main performance parameters and control technologies have reached the international leading level.

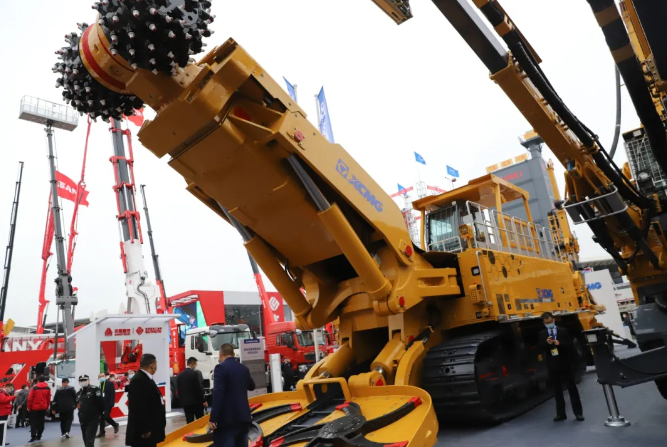

XCMG XTR8/500

Large-tonnage cantilever tunnel boring machine

XCMG XTR8/500 cantilever tunnel boring machine is a rock tunnel excavation equipment that integrates cutting, traveling, loading, cable winding and other functions. It is the world's largest tonnage cantilever tunnel boring machine. The cutting power is 500kW, which is the world's largest power cantilever tunnel boring machine; it adopts a box-type telescopic cutting part, with a cutting height of nearly 9m and a width of over 10m, which can realize the excavation of medium and large-section tunnels in one go. It is mainly used for large-section tunnel projects such as roads and railways and mine tunnel construction. It can be matched with dump trucks, belt conveyors, etc. to realize continuous excavation and transportation operations.

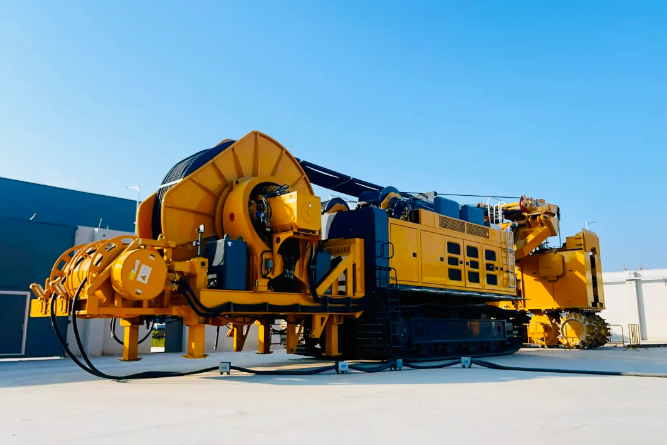

XCMG XVM1600

The world's first vertical milling mining machine

The maximum mining depth of XCMG's XVM1600 vertical milling miner is 100m, and the single mining area is 6m×2.5m. As the core equipment for potash mining, the vertical milling miner changes the traditional horizontal ore dropping to vertical ore dropping. Its vertical milling mining process uses the weight of the mining equipment to achieve ore crushing and self-operation stability, reducing equipment weight and energy consumption, and reducing ore dropping costs. At the same time, the ore is transported by self-flowing continuous transportation, which changes the process of horizontal mining, overlapping and re-transporting transportation, and reduces the number of transportation equipment. It is estimated that the equipment mining efficiency is about 300 cubic meters/hour, which is three times the efficiency of traditional mining equipment, and the mining cost can be reduced by about 30%.

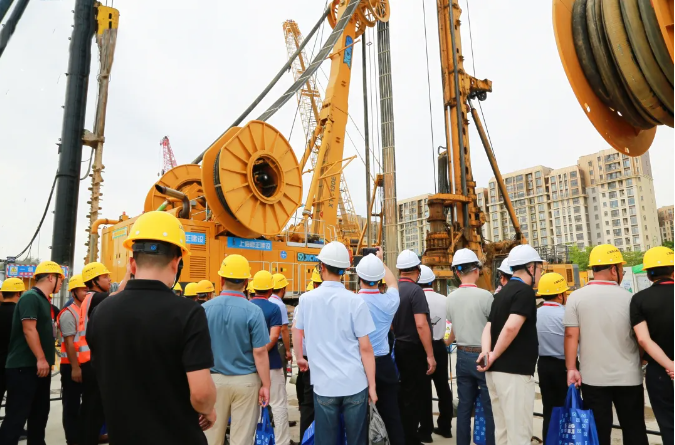

XCMG XTC130E

The first electric double-wheel slot milling machine in China

XCMG XTC130E double-wheel slot milling machine is a newly developed diesel-electric dual-drive large-scale deep foundation ground-connected wall construction equipment. The trenching depth is 85-125m, and the trenching thickness is 0.8-1.8m, which meets the maximum construction depth of 125m and is more efficient; it realizes multiple power modes such as single-electric, single-engine or diesel-electric dual-drive; high-power diesel-electric dual-power system, main engine integrated engine, back-type power station, realizes multiple power modes such as single-electric, single-engine or diesel-electric dual-drive, optimizes the hydraulic system, and configures large-diameter oil pipes and valve groups. The hydraulic system has high efficiency, low fuel consumption, low noise, and can realize continuous operation at night, energy-saving and efficient.
