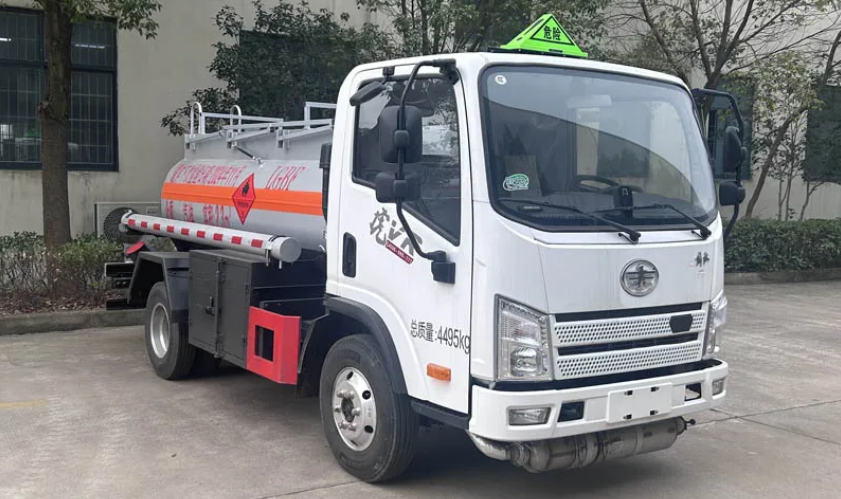

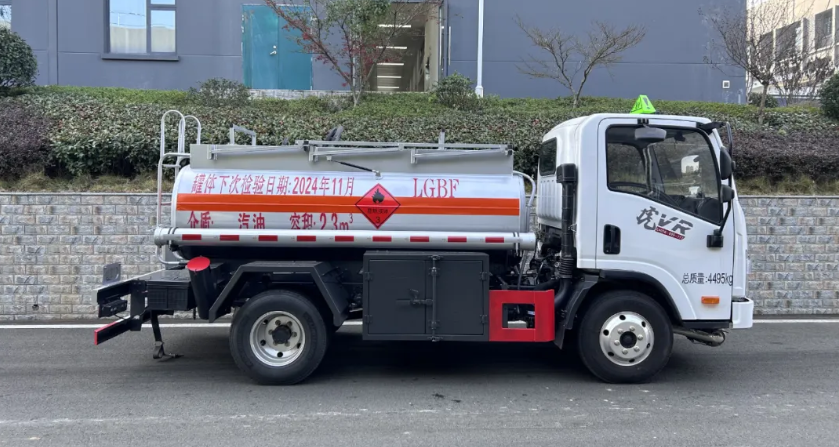

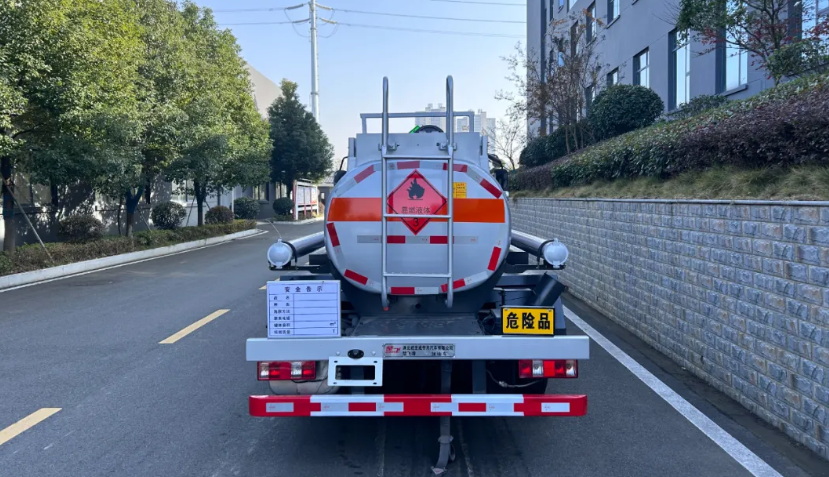

Jiefang Blue Brand 2.3 cubic meter fuel truck
May 20,2024

Jiefang Blue Brand 2.3 cubic meter fuel truck, with a total mass of 4495kg (rated load mass 1535kg, curb weight 2830kg). The announced volume is 2.3 cubic meters, the tank is made of Q235 high-quality carbon steel plate, arc gear oil pump (can be pumped in and out), single warehouse (multiple warehouses can be customized), a complete set of bottom oil loading system (including 1 bottom loading and unloading valve, 1 1 oil and gas recovery valve, 1 oil and gas recovery interface, 1 set of pneumatic combination switch, 1 anti-overflow probe rod and 1 socket), a European standard tank cover, a seabed valve, and folding lifting guardrails on both sides of the top of the tank , with anti-skid steel mesh on the top, 3M orange reflective tape and reflective strips on both sides of the tank, three "flammable liquid" signs, safety notice board, dangerous brand, dangerous goods triangle light, a tool box, two oil pipes, two A fire extinguisher, others are made according to standard configuration.

·Flaw detection process：All main welds of the tank are strictly operated in accordance with the flaw detection process (single-sided welding and double-sided forming: patchwork welding-copper groove, circumferential seam welding-ceramic liner process), and in accordance with the GB18564.1-2019 standard Flaw detection ratio is used for flaw detection (X-ray inspection).

·Sandblasting process: The surface of the tank is sandblasted to remove dust, dirt and rust, and enhances the thickness and adhesion of the paint. The baking process realizes pre-assembly + painting + final assembly. There are no dead ends or omissions in the entire vehicle paint.
