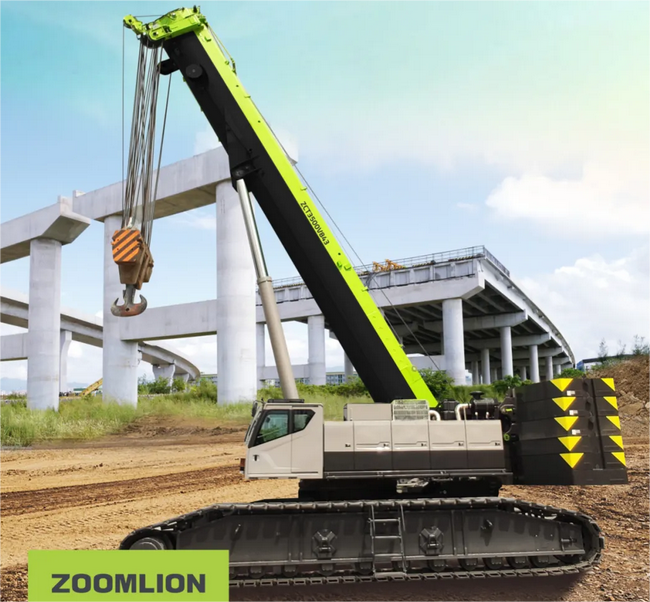

Zoomlion’s new 350-ton telescopic boom crawler crane is here!
May 21,2024
ZCT3500V
Bridge commando
Excellent lifting performance
14.9~90m large-section single-cylinder latch main arm + double luffing arm, equipped with a specific optional boom head, the whole machine can meet the requirements of 180t bridge lifting and 126t bridge independent lifting.
Better adaptability to site.
Variable rail telescopic crawler chassis, 360° all-round construction.
Equipped with a high-torque walking mechanism, the climbing capacity is greater than 25° and it can travel on a 4° slope with load, making it more suitable for construction in harsh and narrow sites such as mud.
Economical, convenient and efficient
Quickly switch from an 8-section arm to a 5-section arm, and the performance of a specific arm length is improved by more than 18%. One-button automatic telescopic, multiple main arm telescopic groups, electronically controlled operation, quick response of 0.7s.
The optional sliding load-displacement counterweight has a rear displacement of 1.2m, which can reduce the counterweight by up to 20 tons and reduce operating costs. The height of the fully counterbalanced reformer is no more than 4.49m, making it easy to pass through height-limited obstacles and enable efficient construction.
Intelligent security is better
The hydraulic system is equipped with advanced dividing and merging control technology, which improves the efficiency of the compound movement on the vehicle and makes the walking control more stable and reliable.
