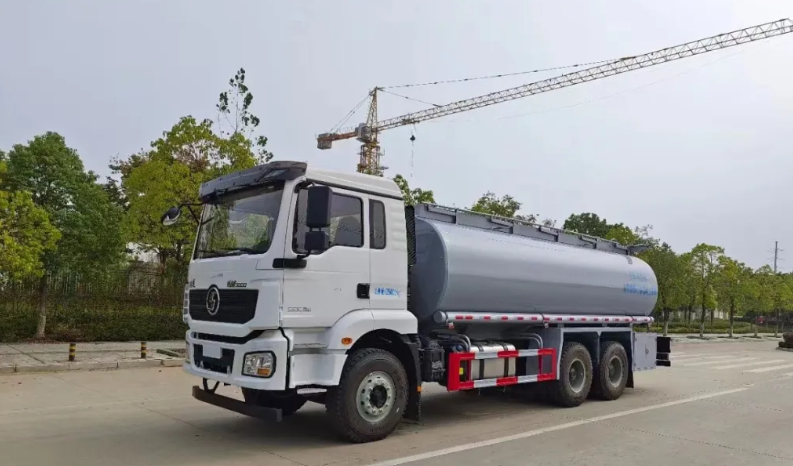

Shacman Delong rear double-axle fluid supply truck
May 27,2024
Chassis model: SX1259MC4C1
Vehicle size mm: 9920×2550×3300,3450,3560
Tank size mm: 7200×2400×1650
Tank size mm: 6800×2450×1700
Total mass: 25000 Kg
Rated load mass: 11870 Kg
Curb weight: 13000Kg
Actual tank volume: 23.5 cubic meters
Effective volume of tank: 18.84 cubic meters
Medium: well cleaning fluid
(1) Chassis configuration: Shacman Delong rear double-axle chassis, model SX1259MC4C1, engine Weichai WP8.350E61, Fast 10th gear, wheelbase 4375+1400, tires 12.00R20.
(2) Top configuration: square and round tank, the tank thickness is 5MM and made of high-quality carbon steel material, and the effective volume of the tank is 18.84 square meters. The tank has four partitions, the sub-beam pad is widened, the sub-beam back plate is fully welded, with two ordinary tank mouths with breathing valves, and an 80-60 self-priming and self-draining pump. The pump inlet and outlet are installed on the right Side, hydraulic head, iron barrel, anti-skid net inside the perimeter, folding guardrail, a tool box, two oil pipes, two fire extinguishers, European lock, light holder with license plate, electrostatic belt, the rest are standard in the factory.
