Technical Parameter
| Conventional parameters | |
|---|---|

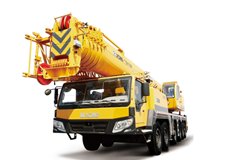

| Equipment Model | QY110K |
| Model Abbreviation | 110 |
| Engine | |
| Model | OM906LA |
| Rated Power (kW) | 162/2100 |
| Rated Torque (N·m/r/min) | 1054/1500 |
| Weight Parameters | |
| Operating Weight (Total Mass in Travel State) (kg) | 54900 |
| Front Axle Load (kg) | 7500/7500 |
| Middle and Rear Axle Load (kg) | 8300/12000/12000/7600 |
| Working Parameters | |
| Rated Total Lifting Capacity (kg) | 110000 |
| Outrigger Span (Longitudinal x Transverse) (m) | 7.56×7.6（5.2） |
| Maximum Moment of Basic Boom (kN·m) | 4233 |
| Maximum Lifting Height of Basic Boom (m) | 13.5 |
| Maximum Lifting Height of Main Boom (m) | 58.7 |
| Maximum Lifting Height of Auxiliary Boom (m) | 73 |
| Tail Swing Radius (mm) | 4510 |
| Operating Speed | |
| Maximum Hoisting Speed (Single Rope, Main Winch) (m/min) | 105 |
| Maximum Hoisting Speed (Single Rope, Auxiliary Winch) (m/min) | 105 |
| Boom Hoisting/Lowering Time (s) | 65 |
| Boom Extension/Retraction Time (s) | 600 |
| Horizontal Outrigger Extension/Retraction Time (s) | 50 |
| Swing Speed (r/min) | 1.9 |
| Travel Parameters | |
| Maximum Travel Speed (km/h) | 80 |
| Maximum Gradeability (%) | 40 |
| Approach Angle (°) | 20 |
| Departure Angle (°) | 14 |
| Minimum Turning Diameter (m) | 24 |
| Minimum Ground Clearance (mm) | 300 |
| Braking Distance (m) | ≤10 |
| Fuel Consumption per 100 km (L) | 75 |
| Machine Dimensions | |
| Dimensions (Length x Width x Height) (mm) | 14800/15270×3000×3920 |
| Longitudinal Distance of Outriggers (m) | 7.56 |
| Transverse Distance of Outriggers (m) | 7.6（5.2) |
| Extended Length of Boom + Auxiliary Boom (m) | 73 |
| Wheelbase(m) | 1420/2420/1800/1420/1505 |
| Track(m) | 2610/2610/2610/2315/2315/2610 |
| Chassis | |
| Engine Model | OM460LA.E3A/1 ISME 420 30 WP12.460N |
| Engine Rated Power (kW/r/min) | 360/1800 306/1900 338/1900 |
| Engine Maximum Output Torque (N·m/r/min) | 2200/1300 2010/1200 2110/1000-1400 |
